The inspiration for the Domino came from the classic Gibson P-90: a single-coil pickup with a fat midrange, a bright, transparent upper-register and a notoriety for being one of the noisiest pickups around. The Domino was conceived in an attempt to deliver that great, single-coil tone in a noise-free package. What the Domino achieves, though, is far beyond anything we could have hoped for.
The Domino's dual-coil design provides a totally noiseless background against which it projects a distinctly single-coil-like tone. But freed from all the background noise, the Domino's tone is purer, even more transparent than that of a traditional single-coil pickup. In the neck position, the pickup's sound is full and reverberant, offering the music a glorious and unfettered air and, in the bridge, the Domino sings with an enormous, chime-like voice.
The Domino is sized to be a drop-in replacement for any traditional humbucker. Its cover is open-topped, so there is no brass or nickel-silver between the strings and the coils to suck away your tone. The pickup is carefully grounded and comes with a shielded lead to minimize the risks of any 120Hz hum and, just like the old P-90, the coils are wound with plain enamel-coated wire. The magnetic configuration of the pickup, however, will remain a proprietorial secret. It's a highly customized arrangement and contributes enormously to the unique tone the Domino produces.

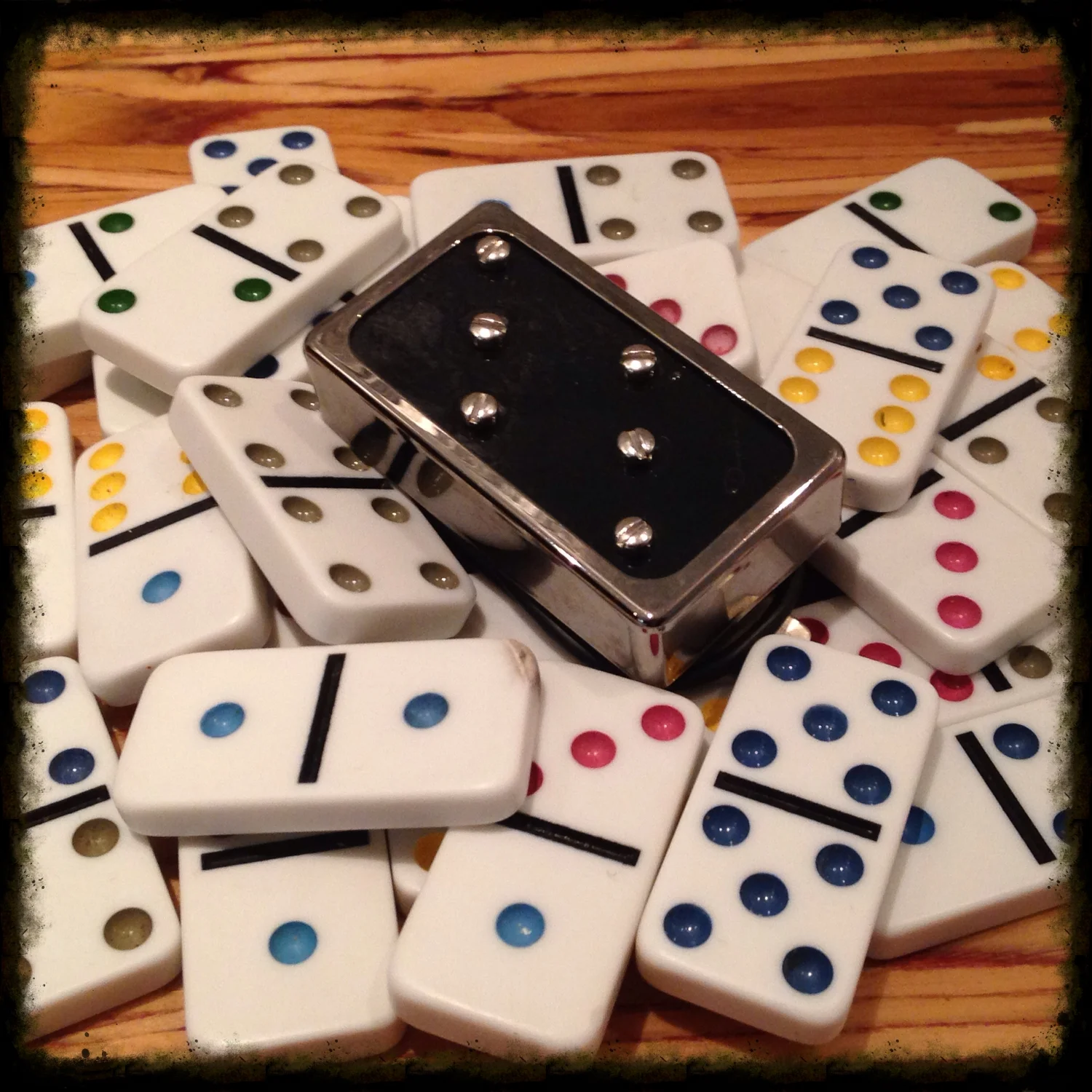

The standard cosmetics for the Domino include a black, lacquered face, silver poles and a chrome cover. If you're interested in cosmetic variations, feel free to inquire.
Measurements
A bass version of the Domino is currently under development as well.

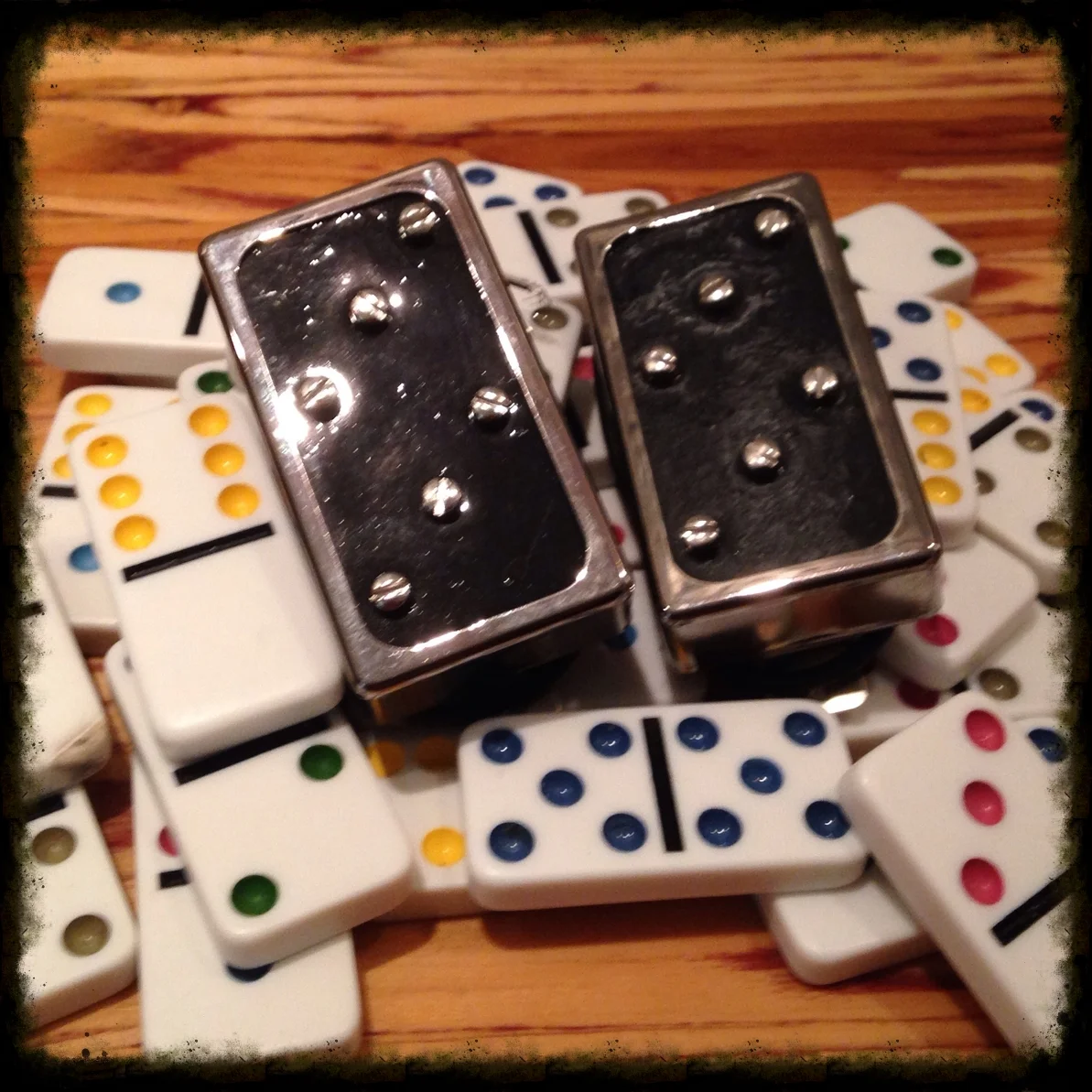

The Domino is a drop-in replacement for any standard sized humbucker, It offers a big, unfettered, reverberant tone without any hint of hum, The set includes both the neck pickup (DCR of approximately 9.5 k-Ohms and inductance of 4 Henries) and the bridge pickup (DCR of approximatey 10.5 k-Ohms and inductance of 4.6 Henries).
The Domino is a drop-in replacement for any standard sized humbucker, It offers a big, unfettered, reverberant tone without any hint of hum, Choose between the neck version (DCR of approximately 9.5 k-Ohms and inductance of 4 Henries) or the bridge version (DCR of approximatey 10.5 k-Ohms and inductance of 4.6 Henries).
The bass version of the Hogan Domino. An eyecatching double-two domino design, totally noiseless operation and a tone to die for. And it fits neatly into a standard Musicman route.
